| Mechanical: · Pitch (Minimum): · Work Force: · Recommended travel: · Operating temperature: | 0.40 mm 30.0 g 0.30 mm -55°C to 120°C |
| Electrical: · Typical Resistance (Avg): · Current carrying capability: · Bandwidth @-1dB IL (GSG): · Loop inductance: · Capacitance: | <50 mΩ 2.5 A >20 GHz 0.33 nH 0.31 pF |
| Material: · Top plunger: · Bottom plunger: · Barrel: · Spring: | Pd Alloy BeCu, Gold plated Phosphorous bronze, Gold plated Music wire, Gold plated |
X1XX | Mechanical | |
Typical Application | Tip (Top/Bottom plunger) | |

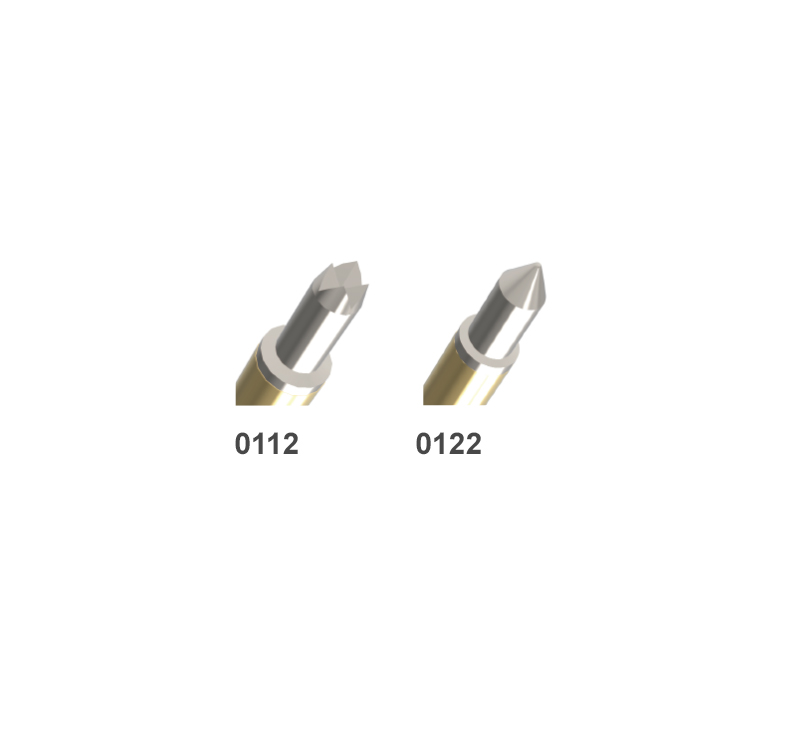

0112 | BGA | 4-pts Crown/Conical Radius |
| 0122 | LGA/QFN | Conical Radius/Conical Radius |
