| Mechanical: · Typical Application: · Pitch (Minimum): · Recommended travel: · Tip (Top/Bottom plunger): | BGA 0.50 mm 0.60 mm 4-pts Crown / Conical Radius |
| Electrical: · Typical Resistance (Avg): · Current carrying capability: · Bandwidth @-1dB IL (GSG): · Loop inductance: · Capacitance: | <80mΩ 3.0 A >16 GHz 0.52 nH 0.42 pF |
| Material: · Top plunger: · Bottom plunger: · Barrel: · Spring: | Pd Alloy BeCu, Gold plated Phosphorous bronze, Gold plated Stainless steel, Gold plated |
X1XX | Mechanical | Material | |
Working Force | Operating temperature | Spring | |

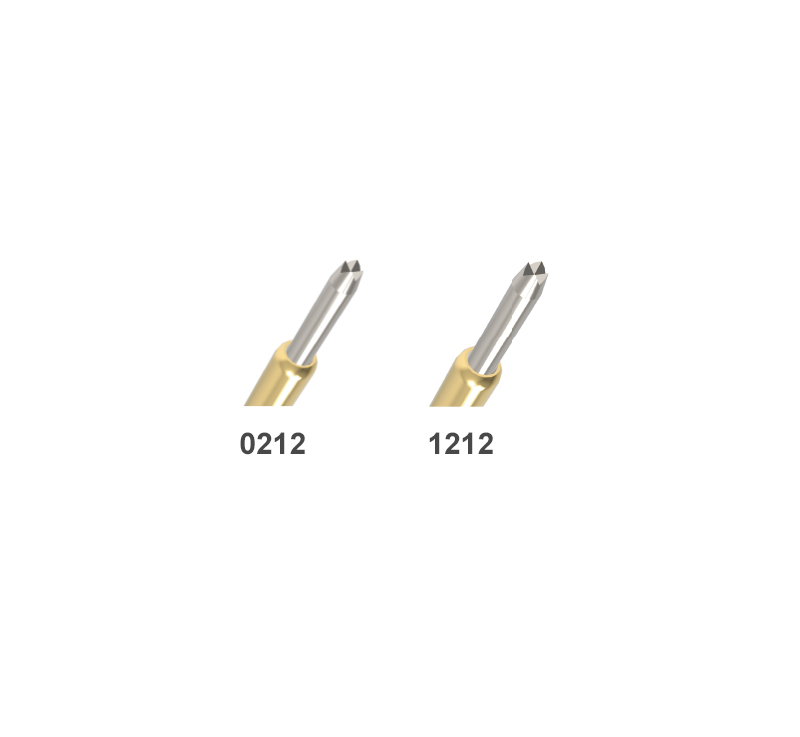

0212 | 30.0g | -55°C to 120°C | Music wire, Gold plated |
1212 | 25.0g | -55°C to 150°C | Stainless steel, Gold plated |
