| Mechanical: · Pitch (Minimum): · Work Force: · Recommended travel: · Operating temperature: · Tip (Top/Bottom plunger): | 0.80 mm 30.0 g 0.80 mm -55°C to 120°C 4-pts Crown/Conical Radius |
| Electrical: · Typical Resistance (Avg): · Current carrying capability: · Bandwidth @-1dB IL (GSG): · Loop inductance: · Capacitance: | <50 mΩ 3.0 A >11 GHz 0.33 nH 0.49 pF |
| Material: · Top plunger: · Bottom plunger: · Barrel: · Spring: | Pd Alloy BeCu, Gold plated Phosphorous bronze, Gold plated Stainless steel, Gold plated |
A1XX | Mechanical | |
Typical Application | Tip (Top/Bottom plunger) | |

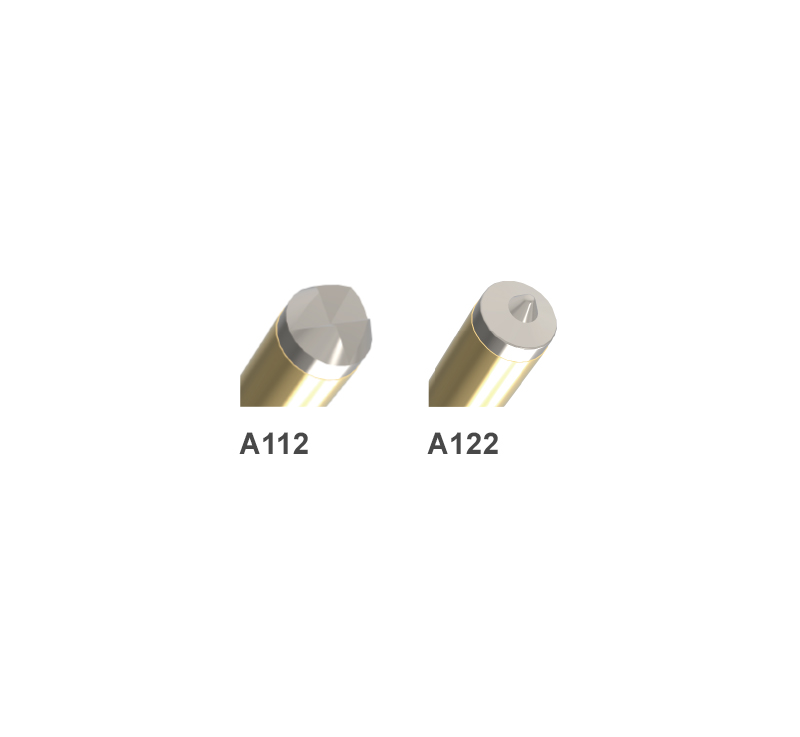

A112 | BGA | 4-pts Crown/Conical Radius |
A122 | LGA/QFN | Conical /Conical Radius |
